EM89bt ( 39.8125, -83.8750) within radius 80 km.
EM27ke ( 37.1875, -95.1250) within radius 161 km.
Power out is 0.0046 watts and S/N threshold is -18 db in 2500 Hz.
Spots were included within the days of the month from 1 to 31.
94760k spots were read from wsprpath.dat from which 4970 were found between the two regions.
Average db the signals were above the -18 threshold:
UTC 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Band _________________________________________________________________________________________________ 160| - - - - - - - - - - - - - - - - - - - - - - - - 80| -23 -19 -18 -16 -15 -17 -19 -22 -20 -20 -17 -17 -21 -26 - - - - - - - -33 -27 -21 40| -27 -28 -28 -31 -32 -31 -32 -29 -29 -28 -27 -27 -28 -27 -27 -27 -29 -29 -31 -30 -29 -26 -24 -25 30| -29 - - - - -30 - - - -34 -29 - -18 -20 -22 -23 -23 -22 -23 -23 -24 -23 -20 -21 20| -30 -27 -28 -28 -28 -25 -30 -32 -33 -33 -34 - -27 -20 -15 -15 -14 -13 -14 -14 -15 -18 -17 -20 17| - - - - - - - - - - - - - - - - - - - - - - - - 15| - - - - - - - - - - - - - - - - - - - - - - - - 12| - - - - - - - - - - - - - - - - - - - - - - - - 10| - - - - - - - - - - - - - - - - - - - - - - - -Number of spots evaluated during each hour on each band:
UTC 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Band _________________________________________________________________________________________________ 160| - - - - - - - - - - - - - - - - - - - - - - - - 80| 26 32 43 40 41 27 32 26 23 24 19 24 13 4 - - - - - - - 5 11 23 40| 117 70 30 27 22 15 18 37 65 118 133 97 106 134 123 100 72 79 82 73 115 178 218 234 30| 7 - - - - 4 - - - 4 8 - 5 68 74 64 43 39 58 48 41 59 58 20 20| 13 11 11 14 14 15 17 6 8 6 5 - 4 24 91 141 201 226 205 201 172 182 100 13 17| - - - - - - - - - - - - - - - - - - - - - - - - 15| - - - - - - - - - - - - - - - - - - - - - - - - 12| - - - - - - - - - - - - - - - - - - - - - - - - 10| - - - - - - - - - - - - - - - - - - - - - - - -Note: If fewer than 4 spots a hyphen is shown. If greater than 999 spots log10 of spots is shown.
Re: WSPRpath
Posted by Jim Bailey, AJ8S on December 01, 2021 at 12:25:27.
In reply to WSPRpath posted by Jim Bailey, AJ8S on December 01, 2021
Having posted about wsprpath, I see that the font of the message board changes the spacing of the characters such that the sample report is very hard to read. Be assured that if you run the program and view the report with notepad all will be well.
Re: FJB Copied!
Posted by Bill Hensel on December 01, 2021 at 14:54:08.
In reply to Re: FJB Copied! posted by John Davis on December 01, 2021
John, Re: WSPRpath
Thanks for all the personal work you put into the beacon sub culture and your web site. Thanks for being there. It was my pleasure sir.
Posted by John Davis on December 01, 2021 at 16:09:07.
In reply to Re: WSPRpath posted by Jim Bailey, AJ8S on December 01, 2021
Looks like a very useful program, Jim.
The font situation you encountered in posting can be overcome by using the <pre> and </pre> paired tags around the data to force a monospace font, as noted in our FAQ page.
I've retrofitted those tags in your post, although you may notice that it shrunk the typeface a bit compared to the non-monospace default font. That's a problem common to most modern browsers, unfortunately, whose developers seem to think monospacing is old-hat; but if you use the <pre></pre> pair when initially writing the post, the board will automatically assign style sheet parameters to compensate.
73 Re: WSPRpath
John
Posted by Jim Bailey AJ8S on December 02, 2021 at 03:25:33.
In reply to Re: WSPRpath posted by John Davis on December 01, 2021
John, thanks for fixing my post and for explaining how you did it.
Mention of LWCA on WRMI, Sunday the 5th
Posted by John Davis on December 02, 2021 at 07:19:20.
Radio Miami International is scheduled to carry a program from Texas Radio Shortwave this Sunday evening, 5 December, at 8:00 PM Eastern/7:00 PM Central (0100 UTC), featuring the eight radio clubs that remain from the umbrella organization, ANARC. The broadcast will be transmitted on 5950 kHz.
For more information, including how to submit reception reports, click to read a text file from Cap'n Rick of TRSW.
Re: SHO Antenna and HiFer 7P & PVC in OR
Posted by WA1EDJ Bob on December 02, 2021 at 14:43:25.
In reply to Re: SHO Antenna and HiFer 7P & PVC in OR posted by August Johnson KG7BZ on November 30, 2021
Thanks August.
I got a WSPR decode last night from KG7BZ. Just one but you made it -30db here in EM83du.
So antenna is doing well. That's a long haul. I don't often get decodes from the west coast. That's what I like about WSPR on 22M, don't need to be around 24/7 to see some results.
Bob SIW, WM, WH2XXP Tonight on 1750 m
EDJ
Who is currently QRT. Listening for a change. So you won't see me on 555 383 ish.
Posted by John Davis on December 03, 2021 at 06:07:47.
LowFER SIW is good copy in both QRSS30 and 60, WM is fair, and WH2XXP is a welcome surprise at 185.305 kHz.
There is more t-storm activity off the Atlantic coast than recent nights, keeping static levels up, so I'm skeptical of seeing TAG; but I'll keep watching the watering hole tonight anyway. Also seems to be a bit more PLC QRM than recent weeks, too, but none around 185.302 this evening.
Re: SIW, WM, WH2XXP Tonight on 1750 m
Posted by Garry, K3SIW on December 03, 2021 at 16:01:56.
In reply to SIW, WM, WH2XXP Tonight on 1750 m posted by John Davis on December 03, 2021
Glad the lowfer is making it out your way John. And thanks for mentioning WH2
XXP on 185.305 kHz. I've been using ARGO at QRSS60 to look for TAG and it doesn't tune up that high so last night I switched to QRSS30. Saw some traces that probably came from WH2XXP but nothing from TAG. I've only copied TAG IDs a few times this winter season. Meanwhile, lowfer KE has come in every time I looked. E-W propagation hasn't generally been very good, but still good enough to often copy DL7NN and VO1NA on 136 kHz. And NDBs from South America have often been coming through so N-S propagation has been good.
73, Garry, K3SIW, EN52ta, Elgin, IL
RR
Posted by Bill Hensel on December 03, 2021 at 19:33:55.
RR is Q5 copy actually pretty strong, RR followed with a long dash Time 1919utc. HiFERs Friday Noon
73 from Pine, Colorado
Posted by John Davis on December 03, 2021 at 20:22:50.
LCSC, NC, EH, USC (on top of SIW), and MTI at the watering hole; plus WV and NDB2, TON, possible visual trace of VAN, unmistakable bits of RF, good YSO and KAH, and faint ODX.
Reception has been impaired today by use of a different notebook computer at the farm, which gives me no option to use external battery power directly. Turns out, its AC adapter is noisy all the way to 22 meters...noisy enough to obscure everybody but Pat's two beacons and NC. Its internal battery gives limited run time, of course, and the screen illumination supply radiates faint but annoying carriers too. Sure hope I can find a suitable connector for external battery power soon!
Re: SIW, WM, WH2XXP Tonight on 1750 m
Posted by John Davis on December 03, 2021 at 20:52:09.
In reply to Re: SIW, WM, WH2XXP Tonight on 1750 m posted by Garry, K3SIW on December 03, 2021
Thanks for the followup, Garry. I'd been waiting to look for KE until I've had copy of TAG based on previous years' results, but I'm thinking perhaps that's not a good strategy this time.
Alas, even if TAG had been present last night, I might not have been able to discern it anyway. I'm using a different computer in the field now, due to having fried the old Acer -again- three weeks ago. (Even though I remembered to disconnect it from the deep cycle battery bank before performing battery maintenance this time, and didn't reconnect until afterward, somehow overvoltage from the charger still popped the input regulator chip just like it did three years ago. This time, I'm not sure if a cheap replacement will be available for the motherboard, the way it was before.)
The hopefully-temporary replacement machine is an HP model that's even older, and runs Windows Vista...sort of...and requires a size of power plug that I do not have any spares for. So, I had to improvise a bit and run its AC adapter all night, powered from my Westinghouse 600i battery pack/inverter. The inverter is delightfully quiet at 1750 meters, but the HP adapter is not! After extensive testing this morning, I found out that it was the source of those new PLC lines I reported last night. Those lines turn out to be strong enough to degrade reception of the weaker daytime groundwave signals from WM and SIW, which are much cleaner when I run the machine only from its internal battery. At HF, the adapter produces a continuous soft hiss that obliterates all but the strongest HiFER beacons.
Really bad timing to lose my computer at the start of prime LF listening season, with supply chain problems rampant everywhere.
Re: Mention of LWCA on WRMI--Correction: Saturday!
Posted by John Davis on December 04, 2021 at 04:44:21.
In reply to Mention of LWCA on WRMI, Sunday the 5th posted by John Davis on December 02, 2021
Please note...the aforementioned broadcast is at 0100 on 5 Dec UTC. In the Americas, that is Saturday evening at 8:00 PM EST, 7:00 PM CST, 6:00 Mountain and 5 PM Pacific.
Re: HiFERs Friday Noon
Posted by John Davis on December 04, 2021 at 04:49:20.
In reply to HiFERs Friday Noon posted by John Davis on December 03, 2021
By 5:02 PM, 7P and RY had joined LCSC, NC, EH, and USC at the watering hole, while MTI departed. Of the CW beacons elsewhere in the band, only RF and K6FRC were audible, with the latter gradually gaining strength.
Re: SZX and SIW
Posted by Mark Garrett on December 04, 2021 at 15:45:41.
In reply to Re: SZX and SIW posted by Garry, K3SIW on November 20, 2021
This is troublesome. SZX is mounted in an unheated outdoor weather container at the antenna. The thought was as it got cooler SZX should shift in frequency away from SIW. Unfortunately, I have no way to adjust its frequencies as it is also pulling duty as a 20 meter WSPR transmitter as well. I may have to send the unit back down to Bill in Alabama to have him shift the frequency away from SIW. If I have that done, what would be a preferred frequency to use?
Mark
SJ QRV
Posted by Sal, K1RGO on December 04, 2021 at 17:33:20.
I have SJ running for this season 7 days from 0200 to 1400 UTC QRSS30 on 185.304 kHz in the watering hole with the old xtal, if it fails , alternate freq is 186.850. Re: SZX and SIW
later........... Sal K1RGO
Posted by John Davis on December 04, 2021 at 19:34:22.
In reply to Re: SZX and SIW posted by Mark Garrett on December 04, 2021
I have to trust K5MO that it's SZX. USC walks over SIW at my QTH, which is too close to see your beacon except during sporadic-E openings.
If Bill can raise it 15 Hz from wherever he finds it to be at this time, that would put it back between the two SIW's, with maybe enough margin to account for next summer's drift in the opposite direction.

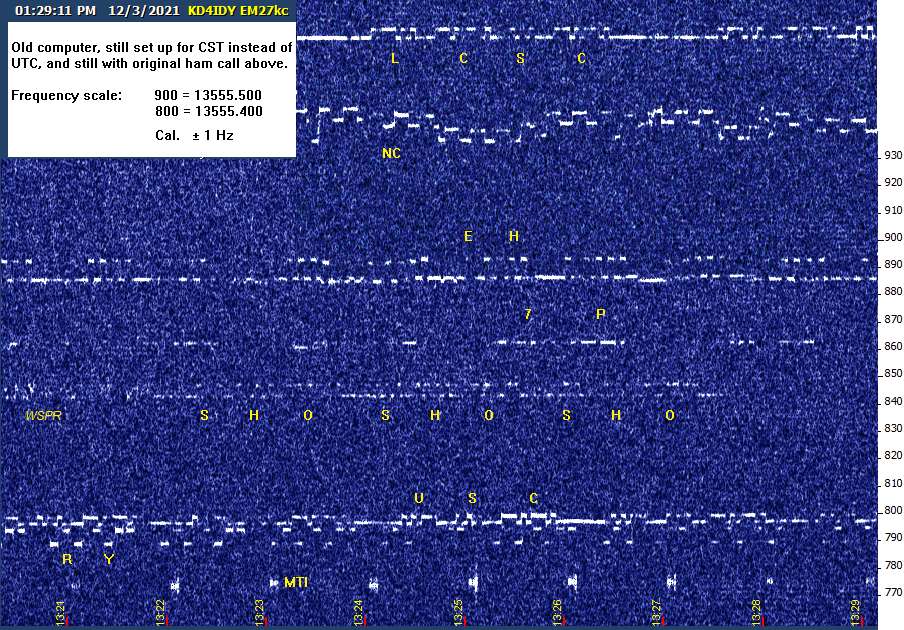

Re: SHO frequency change
Posted by John Davis on December 04, 2021 at 21:03:41.
In reply to Re: SHO frequency change posted by Ed Holland on November 16, 2021
Finally got a chance to listen yesterday, and there was SHO! Admittedly, it wasn't quite as pretty halfway across the continent as when it left Oregon, but over a few screensful, side by side, it was plain enough to ID in the early afternoon. The attached image is a composite of two captures to show a wider range of frequencies. A third instance was also running, tuned lower, but nobody showed up below MTI's frequency all afternoon. Times in the capture are CST.
The old, temporary computer I'm using right now isn't strong enough to run WSPR along with three instances of Argo (they even choked once in a while, all by themselves) so I didn't try. There were so many propagation gaps in every two minute window yesterday that it might not have done any good anyway. Plus, it appeared sometimes that the WSPR slots might have been starting and concluding a few seconds early, but that's hard to say for sure.
---------------------------------------------------------------
File Attachment 1: 3decb13.jpg
Sat 4th Dec HiFERs
Posted by ed holland on December 04, 2021 at 21:20:21.
Midway through the day, and there has been some activity on 22m to report from PVC. TSN continues to be audible as the "watering hole" is monitored with Spectrum Lab and WSJTx. Also prominent is 7P.
So far there have been a few other traces corresponding to beacon frequencies, and snippets of NC and EH. The former don't provide quite enough clarity to ID directly, although the frequencies are indicative of SIW (both transmissions).
More later,
Ed

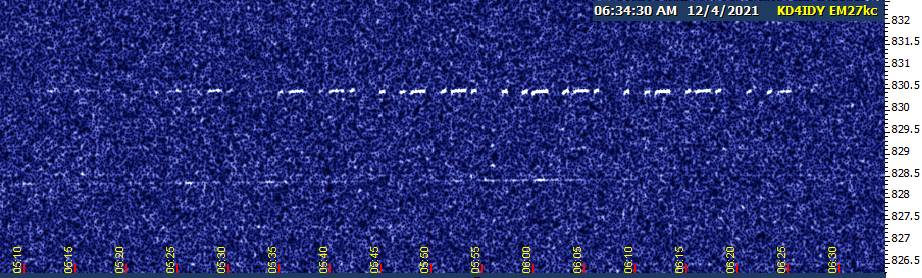

EAR
Posted by John Davis on December 04, 2021 at 21:22:06.
Nice signal this morning, ending 50 minutes before sunrise...a good conclusion to "Year of EAR II," the second consecutive year of captures in every calendar month. There was a higher lightning count than I would have liked, but the propagation was favorable for an hour at a time, then would diminish for roughly an equal interval. Not bad overall!
---------------------------------------------------------------
File Attachment 1: 3decb72.jpg
630 m WSPRs 03-04 Dec
Posted by ed holland on December 04, 2021 at 21:29:27.
Some interesting WSPR catches last night from 630 m, including WA4SZE, Nashville area, KA7OEI, Salt Lake City, W5GNB, Roswell NM. I'll switch over again tonight after 22m monitoring is closed down.
Ed
Re: Sat 4th Dec HiFERs
Posted by ed holland on December 04, 2021 at 21:38:35.
In reply to Sat 4th Dec HiFERs posted by ed holland on December 04, 2021
A quick retune up to listen in above 13,560 netted good audible copy of FJB, quite distinct although just level with the noise.
MRB1
Posted by Bill Hensel on December 04, 2021 at 23:20:14.
At 0211utc q5 signal from MRB1 frequency on the icom 756 was 13563.72 Khz Re: RR
Does anyone have insight into this beacon...totally new to me.
Posted by Bill Hensel on December 04, 2021 at 23:29:15.
In reply to RR posted by Bill Hensel on December 03, 2021
Once again RR makes it into Pine Q5 actually pretty strong at 1926 utc..
Re: Mention of LWCA on WRMI, Sunday the 5th
Posted by Rick Ferranti on December 05, 2021 at 01:12:15.
In reply to Mention of LWCA on WRMI, Sunday the 5th posted by John Davis on December 02, 2021
Rough copy here near San Francisco, but they’re playing music, nothing to do with ANARC
Re: MRB1
Posted by john bergkoetter on December 05, 2021 at 01:12:15.
In reply to MRB1 posted by Bill Hensel on December 04, 2021
Bill, MRB1 is a beacon that I set up today at DM22. I have not had time to add it to the list. It will be added soon, good job picking it up!! It is at a temporary location, I will have to move it sometime early next year
MRB1
Posted by john bergkoetter on December 05, 2021 at 01:19:47.
I have installed MRB1 in Yuma AZ at DM22 today, frequency is 13.563.8 (more or less) any and all reports are welcome. It is a Black Cat, solar powered at about 15 feet on a dipole antenna. Special thanks to Jeff, K8NDB for letting me use the roof of his house.
Re: Mention of LWCA on WRMI, Sunday the 5th
Posted by John Davis on December 05, 2021 at 01:51:11.
In reply to Re: Mention of LWCA on WRMI, Sunday the 5th posted by Rick Ferranti on December 05, 2021
Well, not entirely nothing...but very close to it. Seems to be just exceedingly brief mention of the specialty of one or two clubs between each music set, then encouragement to visit TRSW's F-book page* for links. Still waiting for LWCA to be mentioned, but less hopeful than I might have been.
(* I ran afoul of our spam filter when I tried to spell out the f'book name, which is evidently taboo since a recent post contrary to the board terms.)
Re: SJ QRV
Posted by Garry, K3SIW on December 05, 2021 at 13:52:41.
In reply to SJ QRV posted by Sal, K1RGO on December 04, 2021
It was a noisy night here so not the greatest for looking for lowfers. Nonetheless, SJ showed up just after 0200Z drifting slowly up, then down, then taking an abrupt jump downward to settle at 185.3015 kHz, where it was steady through the night. At times SJ was potent but there was plenty of QSB where it dropped from sight. Nothing was seen of TAG, but WH2XXP came through during a near-sunrise peak on 185.305 kHz. WM was in fine too along with local SIW.
73, Garry, K3SIW, EN52ta, Elgin, IL

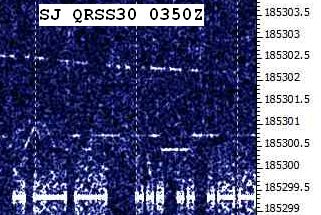

Re: SJ QRV
Posted by John, W1TAG on December 05, 2021 at 13:53:29.
In reply to SJ QRV posted by Sal, K1RGO on December 04, 2021
SJ returned to the air during the night, ending up on 185301.57 Hz, about 0.43 Hz below TAG. That should be OK, if it stays put, although last winter it was above 302, and is listed as being on 185304. As always, there's a warm-up period when it's turned on, drifting down during the first half-hour so so.
John, W1TAG
Re: SJ QRV
Posted by Rick KA2PBO on December 05, 2021 at 14:27:03.
In reply to SJ QRV posted by Sal, K1RGO on December 04, 2021
I copied SJ last night just below TAG . Conditions were not great and only caught the letter "G" from TAG . Here is a capture:
https://www.dropbox.com/s/w5bhkdo4ksoxr2l/SJ%202021-11-5.jpg?dl=0
Rick KA2PBO
Re: MRB1
Posted by Bill Hensel on December 05, 2021 at 15:12:22.
In reply to MRB1 posted by john bergkoetter on December 05, 2021
John, Beacon WV
Thanks for the clarification ... sure had a nice signal.
73 and good Hifer DX
Bill Pine, Colorado
Posted by michael tyler WV on December 05, 2021 at 19:30:48.
Is anybody hearing HiFer "WV". I had a leak in the housing box and had to remount the Circuits in another box. I had to replace the home brew tuner as the other one was damaged by the water leak. After repairing and replacing some cables, I mount everything in an Orange Plastic Ammo container attached to a 4 X 4 treated post 3 foot above the ground. I read a Post that the frequency is moving around and I can only assume the thin plastic of the Orange box is letting the contents temperature change. I have not seen any posts since latest work and tuning was done. I hope to get everything working correctly before the snow hits our area. The equipment is located in a field beside my house that makes access difficult in winter snow. thanks ...mike ..wa8ywo....."WV"
Re: Beacon WV
Posted by John Davis on December 05, 2021 at 19:46:42.
In reply to Beacon WV posted by michael tyler WV on December 05, 2021
Hi Mike. My latest observation of WV was Friday at noon. Was that before or after the work? I haven't had time to go to the field since Friday night, and may be too late for a good path by the time I get there this afternoon...but will monitor further in coming days.
Re: Beacon WV
Posted by michael tyler WV on December 05, 2021 at 20:20:56.
In reply to Re: Beacon WV posted by John Davis on December 05, 2021
Thanks John , that is after the work was done.....Thanks for letting me know. If i didnt hear from anybody, I was going to rework everything. Is the temperature drift much of a problem? I am wondering if I need to add some heat to keep the freq constant? thanks...mike
Re: Mention of LWCA on WRMI
Posted by John Davis on December 05, 2021 at 20:31:40.
In reply to Re: Mention of LWCA on WRMI, Sunday the 5th posted by John Davis on December 05, 2021
Mention of LWCA came near the end of the 0100 UTC hour. They started by saying: "The Longwave Club of America is arguably the most interesting club, for experimenting with radio signals below the broadcast band..."
They'll get no argument from us.
You can hear all of the LWCA segment, plus an excerpt containing the WRMI station ID at 0200, followed by a few seconds of the start of the second hour of Texas Radio Shortwave's program, in the attached MP3 audio clip. Total time of the clip is 2 minutes 1.6 seconds.
---------------------------------------------------------------
File Attachment 1: WRMI_2021-12-05Z_5950kHz.mp3
FJB
Posted by john bergkoetter on December 06, 2021 at 12:21:25.
FJB was seen on Argo at DM22qo on 12/5/2021 at 20:41 UTC and had disappeared again by 21:10.
R.I.P. WH2XND
Posted by Ward K7PO on December 07, 2021 at 02:50:27.
I was talking with Ron, NI7J/WH2XND the other day and he passed along the news that he is QRT on LF/MF. The station has been dismantled and a dipole for HF is going up using the old XND tower. His signal has served as a dependable "receiver check" day in/day out for several years, first on 630M and then on 2200M. For many, he was the first station heard on LF.
On a personal note, I first met Ron 5 or 6 years ago after hearing his WSPR signal on 630M using a clip lead antenna on a newly completed receive converter. Imagine my surprise at that reception. I drove up to his QTH the next day, and over a BBQ lunch, he managed to fill all of my free time over the next couple years with LF/MF stuff. Our running joke is that I blame Ron for all this (100' tower, amps, RX loops, etc.), and he blames me. Spoiler alert, it's all Ron's fault.
Maybe in the future I'll persuade him to get back on, who knows? Then it really will be my fault.
Ward K7PO/WH2XXP Czech - 270 kHz
Tonopah, AZ
Posted by Mike Terry on December 07, 2021 at 11:57:38.
A reminder - expected to go silent at end of December.
Re: R.I.P. WH2XND
Posted by swlem3 on December 07, 2021 at 17:20:06.
In reply to R.I.P. WH2XND posted by Ward K7PO on December 07, 2021
Ward, thanks for passing along the info on Ron and WH2XND. I was wondering why the 2200m activity sort of tapered off, and then just stopped. I can remember copying his decodes the day he first fired up the TX on 630m wspr. Well, I wish him the best with his endeavors as he re-purposes his equipment for HF or whatever band-mode he chooses to pursue.
73 Ward,
Ray ... swlem3 ... N. Central Texas
Italy - 207 kHz
Posted by Mike Terry on December 08, 2021 at 10:35:19.
On December 12th, AM Italia’s 207 kHz long wave transmitter will be switched on at Villa Estense (PD), the power used will be 1 kW with a 350-metre wire antenna. The commemorative transmission is organized to remember the connection between Poldhu and St. John of Newfoundland with the speech of Marconi and 3 points of the letter S in repetition.
(tnx Achille De Santis – IU0EUF “Radio in Schools 4. 0 ARI”)”
https://www.bclnews.it/2021/12/06/trasmissione-speciale-di-am-italia-sui-207-khz-il-12-13-febbraio-2022/
Marco (2021-12-07) YSO
https://mediumwave.info/news/
Posted by john bergkoetter on December 08, 2021 at 15:21:29.
YSO was received at my QTH on 12-8-2021 at 10:59 UTC. The signal was not there for very long...
HiFERs Wednesday
Posted by John Davis on December 08, 2021 at 20:41:04.
ABBY audible at 1650 Z, first time in 2 months! As John noted about YSO (which eluded me this time), signals today don't always last very long, unfortunately.
Half hour before ABBY, I had TSN nicely audible above the watering hole for a few minutes, then gone. NC was stomping right on top of LCSC, then drifted a bit downward over the next half hour. EH tended to fade a lot, but was in a relatively good spot. 7P showed up later, usually only visible for one or two IDs at a time. And USC is no longer atop SIW, but has dropped a bit further down in frequency and is now right in the middle of RY.
Nobody else was seen or heard at the watering hole, but WV was visible at 13554.010, TON was faintly visible for a short while, RF was visible and sometimes audible, so was K6FRC, and finally KAH achieved audibility a few times.
During the noon hour CST, the band was down to only the Carolinians, sometimes bits of RY, and a little FRC.
Re: HiFERs Wednesday
Posted by Chris on December 08, 2021 at 21:51:49.
In reply to HiFERs Wednesday posted by John Davis on December 08, 2021
John, thanks for the report. Abby was down due to antenna coming down from tree due to storm. I placed it back up and not a peep. Took it back down replaced with new wire for antenna after realizing other antenna feed point had some corrosion. SWR is almost 1:1 . It should be propagating better too!

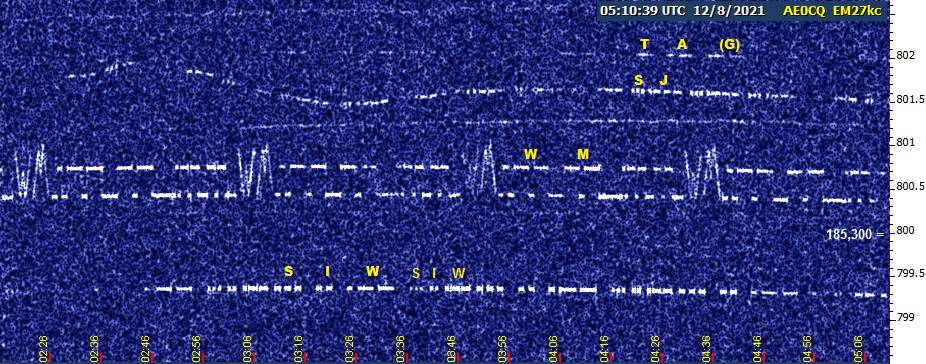

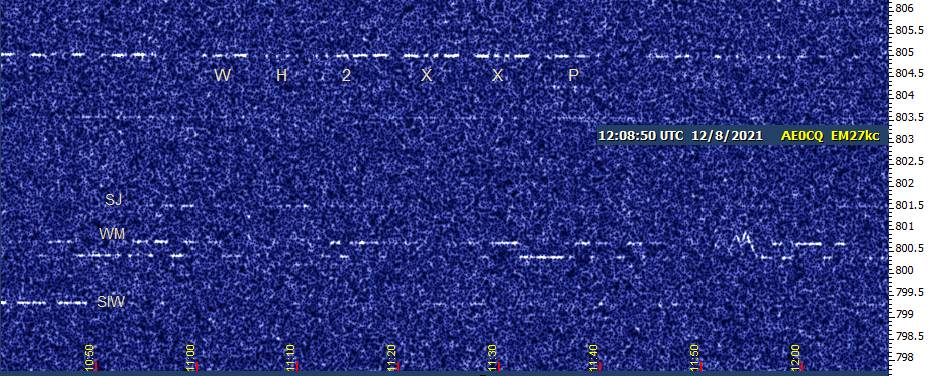

TAG, SJ, WM, SIW, XXP
Posted by John Davis on December 09, 2021 at 02:20:04.
Tuesday night was very productive at the 1750 m watering hole; st least for the first half of the evening. WM and SIW were doing fine already when SJ signed on, then TAG showed up faintly but never quite yielded a full ID.
WH2XXP was also present, but I didn't realize until after the other signals had begun to deteriorate that the screen in which it was visible wasn't being captured earlier. Attached is a second file (7deca33.jpg) showing one of its IDs later in the night.
---------------------------------------------------------------
File Attachment 1: 7decb13.jpg
File Attachment 2: 7deca33.jpg
Re: Italy - 207 kHz
Posted by Mike Terry on December 09, 2021 at 12:14:16.
In reply to Italy - 207 kHz posted by Mike Terry on December 08, 2021
December 8, 2021
AM Italia on 207 kHz.
LW 207 have been active on some nights, for instance on December 7th past 2100 gmt, clear signal in Bologna in parallel with 918 MW.
Stefano Valianti to bdxc iog via WOR iog (2021-12-08)
Wednesday Night
Posted by John Davis on December 09, 2021 at 17:16:28.
In reply to TAG, SJ, WM, SIW, XXP posted by John Davis on December 09, 2021
Nature dashed my hopes for KE last night with t'storms off the Atlantic coast. The computer battery started fading away before the lightning static did, although I did start to see traces of RF at the right spot and with the right durations to be elements of a QRSS60 signal. Will try again tonight if conditions look any better.
If I should achieve results with KE before midnight, I might then turn my attention to JH, even though I don't have particularly high hopes, given the description of his new antenna.
Re: WSPRpath
Posted by Robert, VA3ROM on December 10, 2021 at 18:53:37.
In reply to WSPRpath posted by Jim Bailey, AJ8S on December 01, 2021
Great Statistical Analysis Program!
I've had to use cygwin64 and grep to attached data and then figure out how to parse it down more so Excel could load just a portion and create graphs.
So far, I've been using your program to compare various other modes to WSPR over the same paths. Rather eye opening when you do.
My only issue with using the WSPR data, is that while I know the power gain and radiation pattern of my WSPR reference antenna (TX and RX), I don't know what it is at the other end of the ether.
So, question, Jim. Besides the bandwidth reference for all modes as being 2500 Hz, what do we do for antenna differences, which will affect SNR. Or does it matter in regards to your matter of number crunching? Just wondering.
It's really too bad (IMHO) that WSPR doesn't allow for an APRS type power, height, gain and directivity (PGHR) encoded packet. UIVIEW32 uses PGHR (when available) to draw circle plots around APRS stations on maps to see where they overlap (Venn diagrams, if you will).
Anyway, Jim, you've done a great job of programming something that can "chew" on enormous amounts of data and produced meaningful information, which is the very definition of "data processing"!
73,
Robert
Thursday KE
Posted by John Davis on December 11, 2021 at 02:57:37.
In reply to Wednesday Night posted by John Davis on December 09, 2021

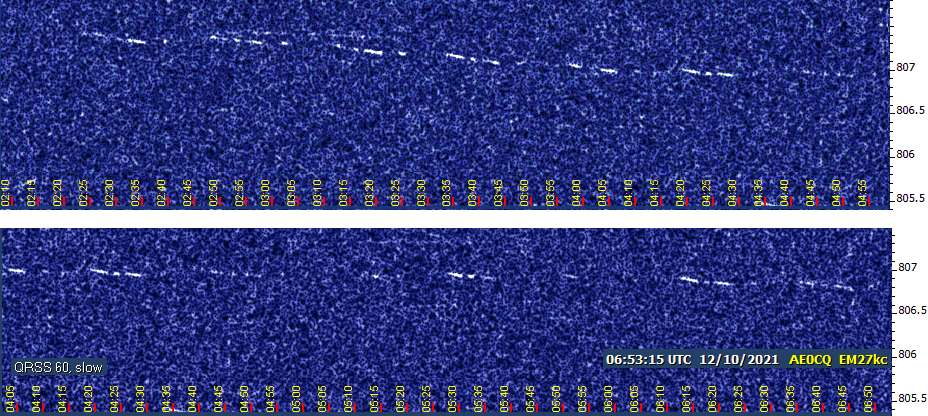

Even with the unsteady frequency, enough skinny FFT bins got filled enough to display enough characters in ARGO during the course of the evening Thursday here in SE Kansas. See attached file.
The lightning count was only about 1% of what it had been the night before, and only 0.3% of what it is tonight--even without taking into account that tonight's severe storms are (a) severe, and (b) right across the border in Missouri, rather than way out in the ocean.
Having had reasonable results with KE, I tried for JH the rest of the night, as I had outlined in the previous post. As I feared, John's antenna did not favor me with enough signal to see more than one possible "H" about 2:20 AM CST.
---------------------------------------------------------------
File Attachment 1: 9dec_KE.jpg
USC and others
Posted by john k5mo on December 12, 2021 at 01:31:39.
There's some good propagation ahead of the storm front. First time to hear/see USC for me. There's several other CW stations in recent grabs.
150 mile propagation is unusual!
Saturday 11th Dec HiFers
Posted by Ed Holland on December 12, 2021 at 02:45:21.
Hi Folks,
Weekend monitoring resumed today at PVC. TSN was heard through the noise, but other signals were feint. NC apeared in the Spectrum Lab traces, and around 22:40 UTC there was one solitary WSPR decode from SIW.
At the watering hole, some feint traces in Spectrum Lab, but nothing clear enough for an immediate, obvious ID.
Cheers
Ed
Re: Italy - 207 kHz
Posted by Mike Terry on December 12, 2021 at 06:40:17.
In reply to Re: Italy - 207 kHz posted by Mike Terry on December 09, 2021
Via Noale SDR near Villa Estense, Dec 12 at 0618 UT, traces of a carrier on 207 kHz, while on 918 I heard some tones, and Italian narration about the historical event. S, ... in CW over and over again at 0624. Maybe this is a loop. 0625 brief announcement about this in English, offering QSL. And repeat the Italian. Now at 0628 on 207 sounds like the same thing, but very poor unreadable there with hashy QRM, and then fast CW QRM, maybe image on that SDR. Glenn Hauser
This posted at 0633 UT Dec 12
(World of Radio)
SAQ transmission scheduled for Dec. 24th (tests 23rd)
Posted by Mike Terry on December 12, 2021 at 10:50:15.
On Christmas morning, Friday December 24th 2021, 250 mile prop on 22 m
SAQ Grimeton is scheduled* to be on the air, to send out a Christmas message to the whole world, using the 97 year old 200kW Alexanderson alternator on 17.2 kHz CW.
Program and Transmission Schedule
Program and transmission schedule:
08:00 CET (07:00 UTC: The transmitter hall at World Heritage Grimeton is opened for visitors.
Transmission & YouTube Live stream
08:25 CET (07:25 UTC): Live stream on YouTube begins.
08:30 CET (07:30 UTC): Startup and tuning of the Alexanderson Alternator SAQ.
09:00 CET (08:00 UTC): Transmission of a message from SAQ.
Test Transmissions
We are planning to carry our some test transmission on Dec 23rd, approximately between 13:00 CET (12:00 UTC) and 16:00 CET (15:00 UTC). SAQ will be on air shorter periods of time during this interval, when we will be carrying out some tests and measurements. Your comments are welcome to info@alexander.n.se.
Live Video from World Heritage Grimeton Radio Station
The event can be seen live on our YouTube Channel or by following the link below.
https://www.youtube.com/channel/UC-83S-l9JKD1iuhsXx3XQ3g
Posted by john k5mo on December 12, 2021 at 12:55:54.
Here's the odd grab of USC (250 mile path) I saw last night on 22M. This occurred coincident with the arrival of a very strong cold front in our areas (the same cold front that produced all the tornadoes in the midwest the previous day).
Could anyone explain the distortion of the signal?
https://imgur.com/a/qemp7Qf
Propagation was interesting all day yesterday.
xxp lowfer
Posted by swlem3 on December 12, 2021 at 15:50:31.
WH2XXP copied overnight. Decided to drop down into lowfer band rather than decode wspr on 630m, as is my usual overnight routine.
www.dropbox.com/s/terlh40678fg2sc/xxp2.jpg?dl=0
Ray ... N.Central Texas using Elad FDM-S2 w/ L400B e-probe.
Re: 250 mile prop on 22 m
Posted by John Davis on December 12, 2021 at 23:10:08.
In reply to 250 mile prop on 22 m posted by john k5mo on December 12, 2021
Hi John. I see two things in your capture that could be taken as distortion.
The not-so-square waveform with its tilt and odd corners is a property of the transmitter itself, which Pat attributes to some change in the internal circuitry of the Epson chip since his previous version. If that's indeed the case, then it must have some servo-like function that attempts to keep the frequency more nearly constant with slow changes in source voltage...fine for overall stability, but not so good for modulation with slow FSK via changes in Vcc. If the chip is one that sees Pin 1 as Output Enable (TH, PH, or PC in the full part number) and not as inverted-Standby (ST, SH, or SP), then it might be preferable to simply key the chip for on/off QRSS.
The other thing I see that could be taken as distortion is the presence of a second signal. USC is on top of someone else again in the capture, probably SIW. Use of single-frequency QRSS would help reduce the risk of this as well.
Re: 250 mile prop on 22 m
Posted by John K5MO on December 13, 2021 at 00:09:36.
In reply to Re: 250 mile prop on 22 m posted by John Davis on December 12, 2021
Hi John,
I never considered this to be part of the transmitter itself, as I've never seen such a short haul signal on 22M, so I'm sure you're right, John. I'll know to look for this again if/when we have such short propagation. I'll have to watch for Pat's transmitter the next time we get a squall line like this too.
In any event, it was fun to see a new signal on 22M
Sunday12th HiFERs
Posted by ed holland on December 13, 2021 at 01:06:36.
Seemingly uninteresting conditions here in the last 12 hours, but TSN, and 7P reached clear audible strength around local Noon. NC faded in and out. WSJTx decoded several instamces of SZX and SIW about 3 hours later. Please ignore the first three frequency readings - I had forgotten to change WSJT to 22m:
UTC Sig Freq Call Locator Distance Mid Day logs
2148 -27 0.4 0.475716 0 KA9SZX EN40 7 2718
2208 -28 0.4 0.475716 0 KA9SZX EN40 7 2718
2210 -28 -2.5 0.475717 0 K3SIW EN52 7 2880
2220 -28 -2.5 13.555417 0 K3SIW EN52 7 2880
2228 -26 0.3 13.555416 0 KA9SZX EN40 7 2718
2230 -28 -2.5 13.555417 0 K3SIW EN52 7 2880
2248 -29 0.4 13.555417 0 KA9SZX EN40 7 2718
2250 -28 -2.5 13.555417 0 K3SIW EN52 7 2880
Posted by john k5mo on December 13, 2021 at 17:00:06.
I see WM making an appearance along with RY , SIW/ and SIW, and I believe SZX right under SIW.
All told, a nice roundup at mid day.
Re: 250 mile prop on 22 m
Posted by John Davis on December 13, 2021 at 17:51:05.
In reply to Re: 250 mile prop on 22 m posted by John K5MO on December 13, 2021
You may get another chance Wednesday evening. A new storm system is setting up to develop just east of my QTH that could produce a very similar squall line over almost the same region, the way they're talking this morning.
It would be fascinating to know the exact geometry of the propagation...most particularly, the direction of arrival of the USC signal. Was the storm between the two of you at the time of the reception, or was it still to your west or northwest?
It might also be worthwhile to monitor late today and early in the morning due to the Geminid meteor shower that is currently underway and peaks tonight. I would not expect to experience meteor trail reflection, such as happens at VHF; but since E-layer propagation depends in part on the availability of free ionized metallic atoms, it's conceivable that a decent meteor shower could help seed formation of sporadic-E clouds if the other necessary conditions were present. On the other hand, I think the comet/asteroid Phaeton, which is the origin of the Geminid stream, is considered a rocky body. So, I don't know how much metal its meteorites actually disperse into the upper atmosphere. It could be an interesting experiment in any case.
Re: 250 mile prop on 22 m
Posted by John Davis on December 13, 2021 at 20:47:26.
In reply to Re: 250 mile prop on 22 m posted by John Davis on December 13, 2021
Correction on the timing: The new storm will develop west of here on Wednesday, and is now expected to arrive in the mid-South in the late morning or afternoon of Thursday.
Re: SAQ transmission scheduled for Dec. 24th (tests 23rd)
Posted by John Davis on December 13, 2021 at 21:34:06.
In reply to SAQ transmission scheduled for Dec. 24th (tests 23rd) posted by Mike Terry on December 12, 2021
We are planning to carry our some test transmission on Dec 23rd, approximately between 12:00 UTC and 15:00 UTC.
The test transmissions on 23 December may present a good opportunity for listeners also, despite their shorter durations and more random nature, depending on the timing of weather events in the Americas. Since VLF is less impacted by diurnal variations than LF is, the signal should remain near nighttime levels, but static from overnight storms usually diminishes in the early daylight hours. This could be just the advantage some listeners will need.
Re: 250 mile prop on 22 m
Posted by John K5MO on December 13, 2021 at 22:15:28.
In reply to Re: 250 mile prop on 22 m posted by John Davis on December 13, 2021
Hi John,
To the best of my recollection (and I'll take notes next time) the front was between USC and my location. Due to the characteristic NE-wardly tilt of most storm fronts here, it was probably quite close to both of us (50-70 miles) at the time of the grab (I'm NE of USC).
I'll run the grabber all day long as usual and see what happens with the next front. It would be fun to see USC appear again.
Bill Ashlock loop design doc
Posted by Laurence KL7L on December 14, 2021 at 21:39:26.
Hi I know Bill published his loop design docs in Long Wave many years back but mine has gone awol and someone asking questions on materials - wonder if anyone has a copy (of Bills two part work) they could share - still very relevant as Im using one of Bills enhanced designs still here, but doesnt work as well as the OKie model of XDW - Seasons greetings Re: Bill Ashlock loop design doc
Laurence
Posted by John Hamer on December 14, 2021 at 22:23:57.
In reply to Bill Ashlock loop design doc posted by Laurence KL7L on December 14, 2021
Mike N8OOU has his transmitting loop documents on his WM beacon history page. Click on the link below, then on beacon history, and they are about half way down the page.
http://wmbeacon.meekfarm.us/wmbeacon/
K6STI low noise antenna for LF?
Posted by John Bruce McCreath on December 17, 2021 at 23:42:22.
I was wondering if anyone had tried using the K6STI low noise loop design at LF and MF frequencies? Although originally intended for use on 160 and 80 metres, why could it not be scaled to work on 630 metres as well.
73, J.B., VE3EAR Re: 250 mile prop on 22 m
Posted by john K5MO on December 19, 2021 at 15:03:48.
In reply to Re: 250 mile prop on 22 m posted by John K5MO on December 13, 2021
The temperature delta is almost here. Grabber is running :-)
No short prop, but.... prop!
Posted by John K5MO on December 19, 2021 at 23:16:05.
https://imgur.com/a/kSICAWQ
A nice family photo with EH at the top, and WM anchoring the bottom end of the grab.
SIW/, and SIW, SZX and RY fill up the mid frame.
Conditions are quite good today. EH was burning pixels early this morning too!
Re: No short prop, but.... prop!
Posted by John Davis on December 20, 2021 at 00:40:23.
In reply to No short prop, but.... prop! posted by John K5MO on December 19, 2021
Not bad! Long prop is better than no prop any old day.
Heard on 13557.5
Posted by Dave Gasque on December 20, 2021 at 06:01:37.
This is my first posting here. 13557.5Khz. @ 0600U. Hearing "E" and "H" on the frequency. Both transmitting sporadically. QTH: Using NA5B SDR in Washington, DC via Web.
Re: SAQ transmission scheduled for Dec. 24th (tests 23rd)
Posted by Mike Terry on December 20, 2021 at 12:36:08.
In reply to Re: SAQ transmission scheduled for Dec. 24th (tests 23rd) posted by John Davis on December 13, 2021
You will be able to hear the mechanical 200 kW transmitter starting up at 07:30 UTC, and sending a CW message at 19:00 UTC on Christmas Eve. Also on air will be SK6SAQ on 3535kHz, 7035kHz and 14035 kHz CW, and on 3755 kHz and 7140 kHz SSB. Reception of the VLF signal requires either an up-converter for an HF receiver, or a simple longwire into the microphone socket of a pc, laptop or phone. The signal can then be heard and seen with the help of the very simple to use software made available by the Grimeton Crew.
Re: Heard on 13557.5
Posted by John K5MO on December 20, 2021 at 13:21:53.
In reply to Heard on 13557.5 posted by Dave Gasque on December 20, 2021
Hi Dave,
Good catch! If you look at the image in my capture in my post below you can see the very strong "EH" that you heard. :-)
SHO received
Posted by Ed Holland on December 20, 2021 at 21:37:37.
...Among others, SHO made a series of strong, clear SHOwings on my Spectrum Lab screenshots. EH, and SIW, the latter also via WSPR were present. Upper atmospheric conditions must have been a bit choppy, as many signals made brief, but strong fade in/out appearences. TSN and 7P were strong and audible at times all through daylight hours, and absent at others.
Re: Heard on 13557.5
Posted by Dave Gasque on December 20, 2021 at 23:53:25.
In reply to Re: Heard on 13557.5 posted by John K5MO on December 20, 2021
John- was I hearing things? The "E" and the "H" sounded to be independent of each other!
RF
Posted by Ian D Baines on December 21, 2021 at 20:41:51.
Heard RF on 13.563 at 1930 UT on December 21, 2021. Strong signal, RST 549. Faded out after a few minutes. Icom R75 and 80 m delta loop. From Kingston, ON eastern end of Lake Ontario.
Re: LSF
Posted by Gregg on December 21, 2021 at 21:50:00.
In reply to LSF posted by mike hayden on November 06, 2021
Hearing something weak with an "S" in the call, 13557.22 KPH SDR in California. 12-21-2021, 2149Z
Re: Italy - 207 kHz
Posted by Mike Terry on December 22, 2021 at 09:48:07.
In reply to Re: Italy - 207 kHz posted by Mike Terry on December 12, 2021
"Some information about IRRS on 207 kHz. The site is the same as 918 kHz. It’s in Italy, in Villa Estense near Padova.
The broadcaster is AM-Italia (ex. Radio Challenger) http://www.am-italia.it/
So future plans on 207 kHz with 300 meters antenna and possibly 1 kW.
IRRS is on 918 kHz from 1700 to 2100 UTC."
Test broadcasts have already taken place.
(Christian Ghibaudo on the Free Radio Forum https://mb.boardhost.com/FreeRadioForum/msg/1639000999.html)
Re: SHO received
Posted by August Johnson KG7BZ on December 22, 2021 at 20:19:39.
In reply to SHO received posted by Ed Holland on December 20, 2021
Glad to see it making it out your way, Ed. I see it almost every day for short bits on the WA5DJJ SDR in New Mexico. It was heard a bunch when I first put it up, conditions haven't been as good as those first few days. Maybe you'll hear it's WSPR sometime too.
73, Re: Heard on 13557.5
August KG7BZ
Posted by John Davis on December 22, 2021 at 20:44:18.
In reply to Re: Heard on 13557.5 posted by Dave Gasque on December 20, 2021
You were hearing things--real ones--but probably not the same beacon that John K5MO was describing. The EH beacon is widely seen on slow waterfall displays, more than heard, because it uses narrow (≤10 Hz) frequency shift keying and a 3 second dot length. It wanders, but has never been noted that high up in frequency.
Instead, you were probably hearing intermittent pulsed emissions from unknown sources often found between 13557 and 13558 kHz. Some of them repeat single short pulses (like an E), some double (I), and some in groups of four (H). It's hard to say whether these are industrial equipment of some sort, or experimenters using rather slack gear (there's often audible frequency shift during key-down, manifesting as a chirp or in more extreme cases, sometimes even a whooping sound; and often a frequency drift from one transmission to the next), and/or whether it's even the same signal sources being reported in different parts of the country. That is something that might be discoverable by someone using multiple Internet SDRs in different locations simultaneously, or one local radio and one from the Web.
K5MO grabber in sweet spot
Posted by WA1EDJ Bob on December 23, 2021 at 16:26:34.
I'd have to say, John's HiFER grabber is the most active I've seen. As I watch it though out the day, I see quite a variety of signals. At some point EH starts to show up.
WM makes an appearance around 11:30 local only to disappear in an hour or so. SIW is visible almost all day. RY is in and out.
Great job John!
Bob New 22 m beacon
EDJ
Posted by Ian D Baines on December 23, 2021 at 21:37:37.
I have just put up a new 22 m beacon on 13.567 MHz. Located in Kingston Ontario at the eastern end of Lake Ontario, the Beacon uses a 22 m dipole only 15 feet above the ground and surrounded by hills. Come summer I Intend to move it to higher ground, add a quarter wave vertical and use solar power. This will be similar to my KAH Beacon in Georgian Bay. But it’s live now, please QSL if you hear it VE3DJI@gmail.com
Re: New 22 m beacon
Posted by Ian D Baines on December 23, 2021 at 21:38:29.
In reply to New 22 m beacon posted by Ian D Baines on December 23, 2021
I should have noted the identifier. DJI
Old Ralph Burhans Articles
Posted by John, W1TAG on December 24, 2021 at 20:40:25.
Us old duffers may remember a series of articles on LF/VLF receiving written by the late Ralph Burhans, and published in "Radio Electronics" magazine in February, March, April, May and June, 1983. Those articles are still available. If you go to:
https://worldradiohistory.com/index.htm
you can locate the issues of "Radio Electronics". Bringing up one of those issues will give you a PDF that you can save and/or print locally.
Some of the info is a bit dated, and the LF spectrum is a lot more hostile with electronic interference these days, but the info should still be very useful, especially to newer folks. Enjoy.
John, W1TAG
Nice touch John
Posted by John K5MO on December 25, 2021 at 00:17:13.
And a Merry Christmas back to you and all the others here .
Re: Old Ralph Burhans Articles
Posted by swlem3 on December 25, 2021 at 00:28:46.
In reply to Old Ralph Burhans Articles posted by John, W1TAG on December 24, 2021
Thanks John. That site is a great resource! Will be good to take a look at Ralph's articles again.
73,
Ray ... N.Central Texas
I'll be hostineg the Christmas Lowfer Net
Posted by Jerry Parker on December 25, 2021 at 00:50:56.
Lowfer net NEW FREQUENCY +/- 3925Khz Saturday morning 0800 California time
Or listen online at kfs:
http://69.27.184.62:8901/?tune=3925lsb
or
KPH Point Reyes:
http://198.40.45.23:8073/
or
Utah Web sdr:
http://www.sdrutah.org/websdr1.html
If you cannot get into the net on 80 meters you can listen on KFS and participate by sending net control your thoughts to wa6owr@gmail.com
MERRY CHRISTMAS AND 73,
1-second bips on 13565 kHz.
Jerry
Posted by Dave Gasque on December 25, 2021 at 14:07:15.
Not sure this is "E" or just a marker of some other kind. 1355U 12.25.21 . Heard on NA5B Kiwi SDR
WI2XLQ's homage to Reginald Fessenden on 486 kHz.
Posted by Dave Gasque on December 25, 2021 at 14:33:10.
Station was booming in to Washington DC @ 0920U (via NA5B's Kiwi web radio) with a short loop of Xmas music ("Oh Holy Night"), YL IDs and OM info on the broadcast.
Santa visits the watering hole..HO HO
Posted by Rick KA2PBO on December 25, 2021 at 14:35:15.
Santa visited the watering hole last night!
The first image is Santa (HO HO) and TAG in QRSS30
https://www.dropbox.com/s/auqtpt34gbl2e00/SANTA and TAG.jpg?dl=0
The next image is Santa and SJ and a partial TAG at QRSS60 but SJ an TAG real close in frequency
https://www.dropbox.com/s/fgv0125gzhypm97/SANTA SJ AND PARTIAL TAG.jpg?dl=0
Merry Christmas
Rick KA2PBO
500 kHz low pass filter
Posted by Lee on December 25, 2021 at 22:59:34.
Anyone have access to one of these, or want to sell one. Or do you know of a source for one. Re: Santa visits the watering hole..HO HO
I did find that Kiwa electronics makes them but I haven’t talked to them yet. Thanks. Lee.
Posted by John, W1TAG on December 26, 2021 at 03:16:48.
In reply to Santa visits the watering hole..HO HO posted by Rick KA2PBO on December 25, 2021
Rick,
Thanks for posting the TAG reception. Santa, on the other hand, seems to regard milk and cookies better than screenshots….
John, W1TAG
Re: Santa visits the watering hole..HO HO
Posted by John Davis on December 26, 2021 at 16:45:31.
In reply to Re: Santa visits the watering hole..HO HO posted by John, W1TAG on December 26, 2021
The watering hole was lit pretty brightly here in Kansas this weekend. On the night of the 24th, WM, SJ, and WH2XXP were solid at various times of the evening, bits and pieces of TAG showed up, and there were fragments of the seasonal visitor HO.
I'm given to understand something happened to WM later in the night, though, and it was conspicuously absent Sunday night. However, SIW and SJ were bright most of the evening, part of the XXP ID was clear, and there were fragments of TAG beside the glare of SJ but sometimes beneath a new spur of QRM from an unknown source.
No mo' HO HO HO, though.
Re: New 22 m beacon
Posted by Zeak on December 26, 2021 at 18:41:16.
In reply to Re: New 22 m beacon posted by Ian D Baines on December 23, 2021
Ian your DJI beacon at 13567.5kHz is 449 with deep QSB at 1823Z, 26 December 2021.
Zeak,
Receiver KiwiSDR Re: Nice touch John
Ant: 80m dipole at 15m
location: DM12
Posted by John Davis on December 27, 2021 at 01:38:23.
In reply to Nice touch John posted by John K5MO on December 25, 2021
Thanks JB. If you're referring to Marconi greeting us in Morse on the LW Home Page, I put that up on the 24th and will be taking it down on the 26th...but anybody who missed it can check it out here for a while longer:
Holiday Home
Re: New 22 m beacon
Posted by John Davis on December 27, 2021 at 01:50:51.
In reply to Re: New 22 m beacon posted by Zeak on December 26, 2021
No luck with DJI here in Kansas. Guess I wasn't looking high enough. Any timetable for nudging it down into the band, Ian?
KAH continues to be quite regular, though.
Re: 500 kHz low pass filter
Posted by swlem3 on December 27, 2021 at 03:39:00.
In reply to 500 kHz low pass filter posted by Lee on December 25, 2021
Lee, sounds like you want to purchase a filter so you may or may not be interested in this... thought I'd mention it anyway:
http://www.w1tag.com/518%20Filter.htm
I built this filter and I'm really pleased with it. I had a lot of junk box caps, so that helped cut down my cost. You may not have a good supply on hand, so I understand if you would rather purchase one.
Ray
DJI
Posted by Ian D Baines on December 27, 2021 at 17:58:47.
In reply to Re: New 22 m beacon posted by John Davis on December 27, 2021
Thanks for the report on KAH John. You can tell how cold it is on Georgian Bay by the frequency. Let me know what frequency you are measuring from time to time this winter please. I am leaving DJI unattended at the home QTH for the winter as I leave for Florida today. I did spend a couple of hours trying to QSY below 13.567 but without luck. I tried a wide range of capacitors to pull the crystal, but most of them put me higher, not lower. I need a new crystal, which I will obtain prior to my return in April. Best I can tell, I am still slightly above 567. Fortunately that is still legal in Canada. I am amazed that DJI has been heard so quickly as the antenna is a dipole, is low to the ground and is surrounded by hills. 73 Ian
Re: 500 kHz low pass filter
Posted by Lee on December 27, 2021 at 18:32:43.
In reply to Re: 500 kHz low pass filter posted by swlem3 on December 27, 2021
You are correct. I don’t want to build one. I have seen this W1TAG site. Good information. My goal is always try to buy one off the shelf. Thanxs.
Re: 500 kHz low pass filter
Posted by swlem3 on December 27, 2021 at 19:02:25.
In reply to Re: 500 kHz low pass filter posted by Lee on December 27, 2021
Not much out there Lee... two links:
https://kiwa-electronics.com/500-khz-low-pass-filter-3.html
https://www.minikits.com.au/LPF9-0M5
Re: 500 kHz low pass filter
Posted by Lee on December 27, 2021 at 20:05:21.
In reply to Re: 500 kHz low pass filter posted by swlem3 on December 27, 2021
Thanks very much. I will look into both companies. In the mean time I remembered that I own a L-202 LF preamp. That has a built in low pass filter cutting off at 500 khz. Only 40db of attenuation but a good place to start.
Re: 500 kHz low pass filter
Posted by swlem3 on December 27, 2021 at 22:44:28.
In reply to Re: 500 kHz low pass filter posted by Lee on December 27, 2021
The 40db attenuation might just be all you need.
Poland - 225 kHz
Posted by Mike Terry on December 29, 2021 at 14:10:12.
225 kHz Longwave radio broadcasting is becoming an exotic affair.
Those who remained can be counted on one hand. Let’s talk about Poland. Probably the loudest station in the range. Frequency 225 kHz …
Back in 1974, near the small village of Gombin, a miracle was built – the Warsaw radio mast. Antenna mast with a height of 646 meters. More than half a kilometer into the sky. The need to build this facility was the fact that the long-wave transmitter in the village of Raszyn, which was operating at that time, did not provide the necessary coverage for Poland. The new location was specially chosen: the central location relative to the Polish territory, high electrical conductivity of the soil.Until 1991 – the tallest building in the world. The mast worked as a half-wave emitter. Power 2000 kW.
General characteristics:
Weight: Polish sources claim 420 tons
Height: 646.38 meters (2120.67 feet)
Frequency: 227 kHz (before February 1988), 225 kHz (after February 1988)
Type: Steel lattice mast with guy wires.
On August 8, 1991, the guy wires were repaired. As the workers secured the temporary cables, a sudden blowing wind twisted the mast and it bent about halfway up. After the destruction of the mast, transmissions at a frequency of 225 kHz continued from the old transmitter in the village of Rashin.
However, the facility was used to broadcast the second program of Polish Radio at 198kHz. To work at two frequencies at once, the transmitter in the village of Rashin could not, and transmissions at a frequency of 198 kHz were stopped before the launch of a new transmitting facility.
In 1995, the Polish authorities began work on the renovation of the Warsaw Mast, as the importance of long-wave transmissions remained relevant.
But local residents opposed the restoration, fearing the danger of electro-magnetic radiation. The search for a new location for the transmitting facility has been started.
A new location was found at a former military facility near the town of Solec Kujawski. It is worth noting that local residents there initially resisted construction as well. The tension was eased after a large donation from Polish Radio for the development of the local community.
The programs from the new facility were broadcast on September 4, 1999. The masts are 330 and 289 meters high.
To this day, the broadcasts of the First Polish Radio Program can be heard at a frequency of 225 kHz. Power: 1200 / 700 kW.
Vladimir Kovalenko, Tomsk-RUS via WWDXC
Kari Kallio in nordx iog (2021-12-28)
via https://mediumwave.info/news/
Re: SAQ transmission scheduled for Dec. 24th (tests 23rd)
Posted by Mike Terry on December 29, 2021 at 15:29:09.
In reply to Re: SAQ transmission scheduled for Dec. 24th (tests 23rd) posted by John Davis on December 13, 2021
Live video from World Heritage Grimeton Radio Station on Alexanderson Day, July 5th 2020 at 13:30 CET (11:30 UTC). Startup, tuning and transmission of a message with the Alexanderson Alternator from 1924 with call sign SAQ.
https://www.youtube.com/watch?v=vU91iLrkrDM
The wonderful sounds of Christmas Eve on longwave
Posted by Mike Terry on December 29, 2021 at 16:19:49.
This has published this week by Clint on the "Oxford Shortwave Log" YouTube channel. It's a longwave bandscan using the Icom IC-R71E recorded in the UK.
https://www.youtube.com/watch?v=UPn_vxWhSMI
SHO/KG7BZ Copy
Posted by Zeak on December 30, 2021 at 00:38:02.
SHO/KG7BZ,
Your WSPR and QRSS signals have been a fairly strong at this location today although with long and short periods of QSB.
Copy was good from 1820Z until 2355Z. Even when no WSPR decode was possible, both WSPR and CW waveforms were visible on the spectrograph.
I've ID your signal in the past and suspect propagation between your location and this is a product of Es rather than sky-wave.
UTC dB dT Freq dF Call Grid km dBm 1830 -20 0.2 13.555443 0 KG7BZ CN84 1384 7 (5.0 mW) 1850 -25 0.0 13.555441 0 KG7BZ CN84 1384 7 (5.0 mW) 1900 -26 0.2 13.555443 0 KG7BZ CN84 1384 7 (5.0 mW) 1910 -28 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 1920 -24 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 1940 -24 0.2 13.555443 0 KG7BZ CN84 1384 7 (5.0 mW) 2020 -25 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 2030 -28 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 2150 -26 0.2 13.555443 0 KG7BZ CN84 1384 7 (5.0 mW) 2200 -23 0.2 13.555443 1 KG7BZ CN84 1384 7 (5.0 mW) 2220 -26 0.0 13.555441 0 KG7BZ CN84 1384 7 (5.0 mW) 2230 -27 0.0 13.555441 0 KG7BZ CN84 1384 7 (5.0 mW) 2250 -20 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 2300 -24 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 2310 -23 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 2320 -26 0.1 13.555442 0 KG7BZ CN84 1384 7 (5.0 mW) 2350 -23 0.1 13.555442 -1 KG7BZ CN84 1384 7 (5.0 mW)
Zeak,
Receiver KiwiSDR
Ant(s): 80m dipole at 15m and 1m Loop
Location: DM12
New Years LOWFER NET 3925 kHz
Posted by Jerry Parker on December 31, 2021 at 16:46:54.
Lowfer net +/- 3925Khz Saturday morning 0800 California time
Or listen online at kfs:
http://69.27.184.62:8901/?tune=3925lsb
or
KPH Point Reyes:
http://198.40.45.23:8073/
or
Utah Web sdr:
http://www.sdrutah.org/websdr1.html
If you cannot get into the net on 80 meters you can listen on KFS and participate by sending net control your thoughts to wa6owr@gmail.com
Bring your New Years Lowfer resolutions,
73
Jerry
potrzebie
